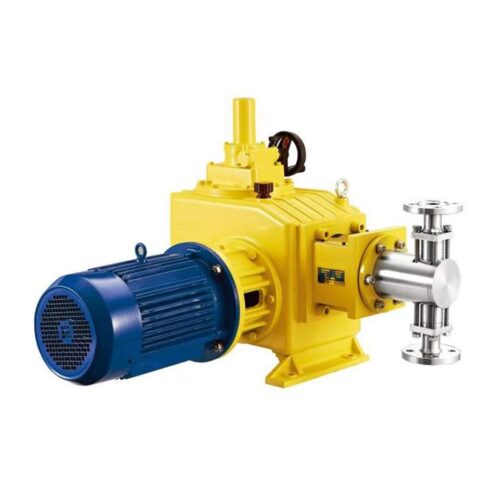

High Pressure Plunger Chemical Pumps
High Pressure Plunger Chemical Pumps JDR Series Plunger Metering Pump Capacity range 92-6050lph,8-500bar Power: 5.5kw JDR motor can be both vertical or horizontal installed.
Description
High Pressure Plunger Chemical Pumps
JDR Series Plunger Metering Pump
Capacity range 92-6050lph,8-500bar
Power: 5.5kw
JDR motor can be both vertical or horizontal installed. Multiplex gear boxes with one motor drive and pump base is available.
Parameter Table
| Model |
50Hz |
60 Hz |
Pressure |
Plunger |
Stroke |
Power |
Inlet&Outlet Size |
Connection Size |
|||||
|
Flow |
Flow |
SPM |
Flow |
Flow |
SPM |
(Bar) |
(Psi) |
||||||
|
JDR 92/50 |
92 |
24 |
96 |
29 |
110 |
115 |
500 |
7250 |
20 |
60 |
5.5(7.5) |
DN15 |
DN15 |
|
JDR 145/32 |
145 |
38 |
46 |
174 |
320 |
4640 |
25 |
||||||
|
JDR 190/18 |
190 |
50 |
60 |
228 |
250 |
3625 |
28 |
||||||
|
JDR 240/20 |
240 |
63 |
76 |
288 |
200 |
2900 |
32 |
||||||
|
JDR 430/11 |
430 |
114 |
136 |
516 |
110 |
1595 |
42 |
DN20 |
DN20 |
||||
|
JDR 520/9.0 |
520 |
137 |
165 |
624 |
90 |
1305 |
45 |
||||||
|
JDR 650/8.0 |
650 |
172 |
206 |
780 |
80 |
1160 |
50 |
||||||
|
JDR 780/6.5 |
780 |
206 |
247 |
936 |
65 |
943 |
55 |
||||||
|
JDR 930/5.5 |
930 |
246 |
295 |
1116 |
55 |
798 |
60 |
DN25 |
DN25 RF |
||||
|
JDR 1100/4.6 |
1100 |
291 |
349 |
1320 |
46 |
667 |
65 |
||||||
|
JDR 1300/4.0 |
1300 |
343 |
412 |
1560 |
40 |
580 |
70 |
||||||
|
JDR 1480/3.5 |
1480 |
391 |
469 |
1776 |
35 |
508 |
75 |
||||||
|
JDR 1700/3.0 |
1700 |
449 |
539 |
2040 |
30 |
435 |
80 |
DN32 |
DN32 RF |
||||
|
JDR 1920/2.8 |
1920 |
507 |
609 |
2304 |
28 |
406 |
85 |
||||||
|
JDR 2150/2.4 |
2150 |
568 |
682 |
2580 |
24 |
348 |
90 |
||||||
|
JDR 2400/2.2 |
2400 |
634 |
761 |
2880 |
2.2 |
32 |
95 |
||||||
|
JDR 2680/2.0 |
2680 |
708 |
850 |
3216 |
18 |
261 |
100 |
DN40 |
DN40 |
||||
|
JDR 3250/1.6 |
3250 |
859 |
1030 |
3900 |
15 |
218 |
110 |
||||||
|
JDR 3860/1.3 |
3860 |
1020 |
1224 |
4632 |
13 |
189 |
120 |
||||||
|
JDR 4550/1.1 |
4550 |
1202 |
1443 |
5460 |
11 |
160 |
130 |
||||||
|
JDR 5260/1.0 |
5260 |
1390 |
1668 |
6312 |
10 |
145 |
140 |
DN50 |
DN50 RF |
||||
|
JDR 6050/0.8 |
6050 |
1598 |
1918 |
7260 |
8 |
116 |
150 |
||||||
Emoclew America plunger metering pump is designed for high pressure and heavy-duty applications. Unlike loss motion pumps with spring, all LPG plunger pumps are push and pull design. The plunger makes harmonic motion by the crankshaft .
Features:
- Flow rate can be adjusted via unique adjusting mechanism from 0-100%
- The adjustment can be carried when pump is in operation or at stop
- The steady accuracy is ±1% from 30%-100% of the maximum output
- Automatic operation is achieved by variable speed drive
- Special application for high temperature or low temperature is available with cooling jacket or heating jacket
Materials:
- Pump head: SS304,SS316
- Pump case: Cast Iron
- Plunger: Ceramic or SS316 coated with ceramic
- Packing seal: PTFE and SS316 Ring
- Valves: SS304,SS316
- Valve Ball: SS304,SS316, Ceramic
Emoclew America, as one of the leading such manufacturers and suppliers, is professional in manufacturing high pressure plunger chemical pumps. Done’t hesitate to buy advanced high pressure plunger chemical pumps with our factory. We will do our best to meet your requirement.
