Double Heads Diaphragm Metering Pumps

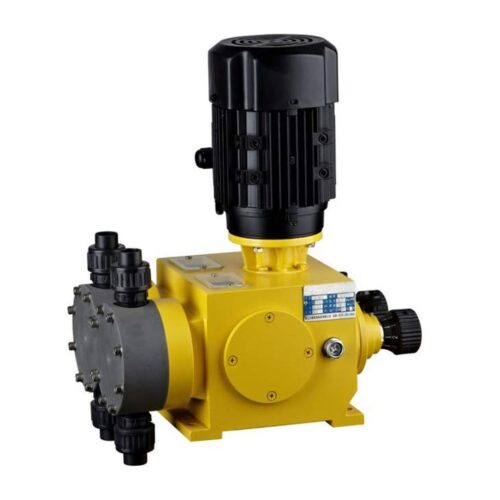

Double Heads Diaphragm Metering Pumps2JMX mechanical diaphragm metering pump has duplex pump head with one motor and gear box.
Description
Double Heads Diaphragm Metering Pumps
2JMX mechanical diaphragm metering pump has duplex pump head with one motor and gear box. The two heads work individually, thus each head flow rate can be adjusted seperately. This roubst designed pump is suitable for two kinds liquid mixing dosing.
Specifications:
- Capacity range: 40 l/h -240lh under 50Hz
- Pressue range: 4-8 bars
- Processing Temperature: from 0-70℃ ( 32-158℉)
- Stroke Adjustment: 0-100%
- Suction lift: 1.5m
- Accuracy: ±2% of set point
Materials
- Pump head: PVC, PTFE,SS304,SS316
- Diaphragm: PTFE
- Check Valve: PVC, PTFE,SS304,SS316 (same as pump head selection)
- Valve ball: Ceramic, SS304,SS316
Parameter Table
| Model | 50Hz | 60 Hz | Pressure | Power kW(HP) |
|||||
| Flow (lph) |
Flow (gph) |
SPM | Flow (gph) |
Flow (lph) |
SPM | (Bar) | (Psi) | ||
| 2JMX 40/0.8 | 40 | 10.6 | 48 | 12.7 | 48 | 58 | 8 | 116 | 0.37(0.5) |
| 2JMX 80/0.6 | 80 | 21 | 48 | 25 | 96 | 58 | 6 | 87 | |
| 2JMX 120/0.5 | 80 | 21 | 48 | 25 | 96 | 58 | 5 | 73 | |
| 2JMX 160/0.5 | 160 | 42 | 96 | 51 | 192 | 115 | 5 | 73 | |
| 2JMX 200/0.4 | 200 | 53 | 96 | 63 | 240 | 115 | 4 | 58 | |
| 2JMX 240/0.4 | 240 | 63 | 96 | 76 | 288 | 115 | 4 | 58 | |
Standard Connection
| Model | PVC | PTFE | SS |
| 2JMX40~2JMX80 | 6.5*10mm PE hose | RC 1/2″F | 10*16mm welding union |
| 2JMX120~2JMX240 | DN15 glue union | RC 1/2″F | 10*16mm welding union |
Emoclew America, as one of the leading such manufacturers and suppliers, is professional in manufacturing double heads diaphragm metering pumps. Done’t hesitate to buy advanced double heads diaphragm metering pumps with our factory. We will do our best to meet your requirement.
