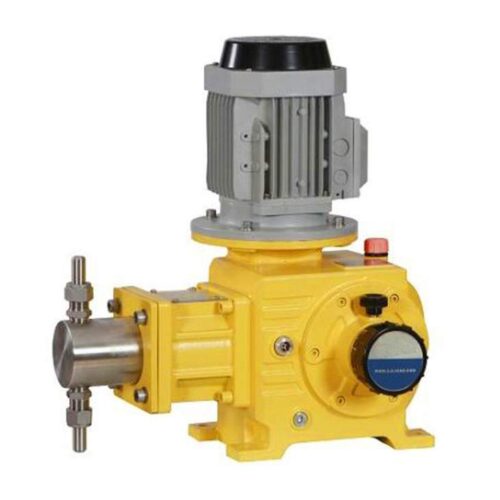

Accurate Plunger Metering Pumps
Accurate Plunger Metering Pumps JSZSeries Plunger Metering Pump Capacity range 6-600lph,6-400bar Power: 0.75kw JSZ motor can be both vertical or horizontal installed.
Description
Accurate Plunger Metering Pumps
JSZSeries Plunger Metering Pump
Capacity range 6-600lph,6-400bar
Power: 0.75kw
JSZ motor can be both vertical or horizontal installed. Multiplex gear box with one motor drive and pump base is available.
Parameter Table
| DN6 | 6*12mm (union for welding ) |
||||||||
| JSZ 10/25 | 10 | 2.6 | 3.2 | 12 | 250 | 3625 | 10 | ||
| JSZ 15/20 | 15 | 4.0 | 4.8 | 18 | 200 | 2900 | 12 | ||
| JSZ 25/10 | 25 | 6.6 | 7.9 | 30 | 100 | 1450 | 16 | ||
| JSZ 40/6.3 | 40 | 11 | 13 | 48 | 63 | 914 | 20 | ||
| JSZ 65/4.5 | 65 | 17 | 21 | 78 | 45 | 653 | 25 | DN10 | 10*16mm (union for welding) |
| JSZ 80/3.6 | 80 | 21 | 25 | 96 | 36 | 522 | 28 | ||
| JSZ 110/2.8 | 110 | 29 | 35 | 132 | 28 | 406 | 32 | ||
| JSZ 130/2.3 | 130 | 34 | 41 | 156 | 23 | 334 | 35 | ||
| JSZ 160/2.0 | 160 | 42 | 51 | 192 | 20 | 290 | 38 | ||
| JSZ 190/1.6 | 190 | 50 | 60 | 228 | 16 | 232 | 42 | ||
| JSZ 270/1.1 | 270 | 71 | 86 | 324 | 11 | 160 | 50 | DN15 | 15*24mm (union for welding) |
| JSZ 330/0.9 | 330 | 87 | 105 | 396 | 9 | 131 | 55 | ||
| JSZ 400/0.8 | 400 | 106 | 127 | 480 | 8 | 116 | 60 | ||
| JSZ 500/0.9 | 500 | 132 | 144 | 159 | 600 | 173 | 9 | 131 | 55 |
| JSZ 600/0.6 | 600 | 159 | 190 | 720 | 6 | 87 | 60 |
Emoclew America plunger metering pump is designed for high pressure and heavy-duty applications. Unlike loss motion pumps with spring, all LPG plunger pumps are push and pull design. The plunger makes harmonic motion by the crankshaft .
Features
- Flow rate can be adjusted via unique adjusting mechanism from 0-100%
- The adjustment can be carried when pump is in operation or at stop
- The steady accuracy is ±1% from 30%-100% of the maximum output
- Automatic operation is achieved by variable speed drive
- Special application for high temperature or low temperature is available with cooling jacket or heating jacket
Materials:
- Pump head: SS304,SS316
- Pump case: Cast Iron
- Plunger: Ceramic or SS316 coated with ceramic
- Packing seal: PTFE and SS316 Ring
- Valves: SS304,SS316
- Valve Ball: SS304,SS316, Ceramic
Emoclew America, as one of the leading such manufacturers and suppliers, is professional in manufacturing accurate plunger metering pumps. Done’t hesitate to buy advanced accurate plunger metering pumps with our factory. We will do our best to meet your requirement.
