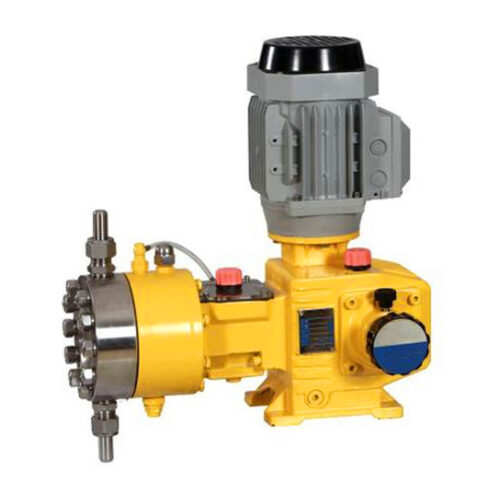

Accurate Hydraulic Diaphragm Metering Pumps JYSX Series Hydraulic Diaphragm Metering Pump Capacity range 10-180lph ,8-140bar Power: 0.37kw JYSX is the smallest model of LGP hydraulic diaphragm pumps.
Description
Accurate Hydraulic Diaphragm Metering Pumps
JYSX Series Hydraulic Diaphragm Metering Pump
Capacity range 10-180lph ,8-140bar
Power: 0.37kw
JYSX is the smallest model of LGP hydraulic diaphragm pumps.
Double diaphragm with diaphragm rupture detecting system is available to prevent accident caused by mixture of hydraulic oil and the liquid after diaphragm ruptu
Parameter Table
| Model |
50Hz |
60 Hz |
Pressure |
Plunger |
Diaphragm |
Stroke |
Power |
Inlet&Outlet Size |
Connection Size |
|||||
|
Flow |
Flow |
SPM |
Flow |
Flow |
SPM |
(Bar) |
(Psi) |
|||||||
|
JYSX 10/14 |
10 |
2.6 |
80 |
3.2 |
12 |
96 |
140 |
2030 |
12 |
67 |
20 |
0.37(0.5) |
DN6 |
6*12mm |
|
JYSX 15/14 |
15 |
4.0 |
120 |
4.8 |
18 |
144 |
140 |
2030 |
12 |
67 |
||||
|
JYSX 27/7.6 |
27 |
7.1 |
8.6 |
32 |
76 |
1102 |
16 |
67 |
||||||
|
JYSX 40/5.0 |
44 |
12 |
14 |
53 |
50 |
725 |
20 |
80 |
||||||
|
JYSX 65/3.2 |
68 |
18 |
22 |
82 |
32 |
464 |
25 |
80 |
DN10 |
10*16mm |
||||
|
JYSX 86/2.5 |
86 |
23 |
27 |
103 |
25 |
363 |
28 |
97 |
||||||
|
JYSX 112/2.0 |
112 |
30 |
36 |
134 |
20 |
290 |
32 |
97 |
||||||
|
JYSX 135/1.6 |
135 |
36 |
43 |
162 |
16 |
232 |
35 |
97 |
||||||
|
JYSX 160/1.3 |
160 |
42 |
51 |
192 |
13 |
189 |
38 |
97 |
||||||
|
JYSX 180/0.8 |
180 |
48 |
57 |
216 |
8 |
116 |
40 |
97 |
||||||
Features of Emoclew America Hydraulic Diaphragm Pumps
It consists of three main devices: (1)driving device, (2) adjusting device, (3) liquid delivery device. The crankshaft which reduces motor rotation speed by worm and worm gear makes the piston reciprocate in the hydraulic oil chamber. This reciprocating movements of the pitston make the PTFE diaphragm and the liquid which is isolated by the diaphragm sucked and discharged. Each pump is with internal pressure relief valve protecting pump from over pressure conditions.
The flow rate can adjusted via uniqe adjusting mechanism from 0-100%. The adjustiment can be carried when pump is in operation or at stop. The steady sate accurancy is ±1% from 30%-100% of the maximum output. Automatic operation is achived by variable speed drive.
LIGAO hydraulic diaphragm pumps are suitable for crossive,vaporing, flammable, explosive or toxic solutions. It can also transport suspended liquid or moderately viscous liquid.
Double diaphragm with diaphragm rupture detecting system is availble to prevent accident caused by mixture of hydraulic oil and the liquid after diaphragm ruptures.
Emoclew America, as one of the leading such manufacturers and suppliers, is professional in manufacturing accurate hydraulic diaphragm metering pumps. Done’t hesitate to buy advanced accurate hydraulic diaphragm metering pumps with our factory. We will do our best to meet your requirement.
